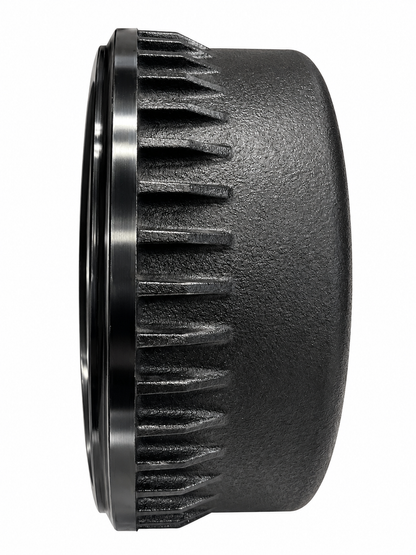

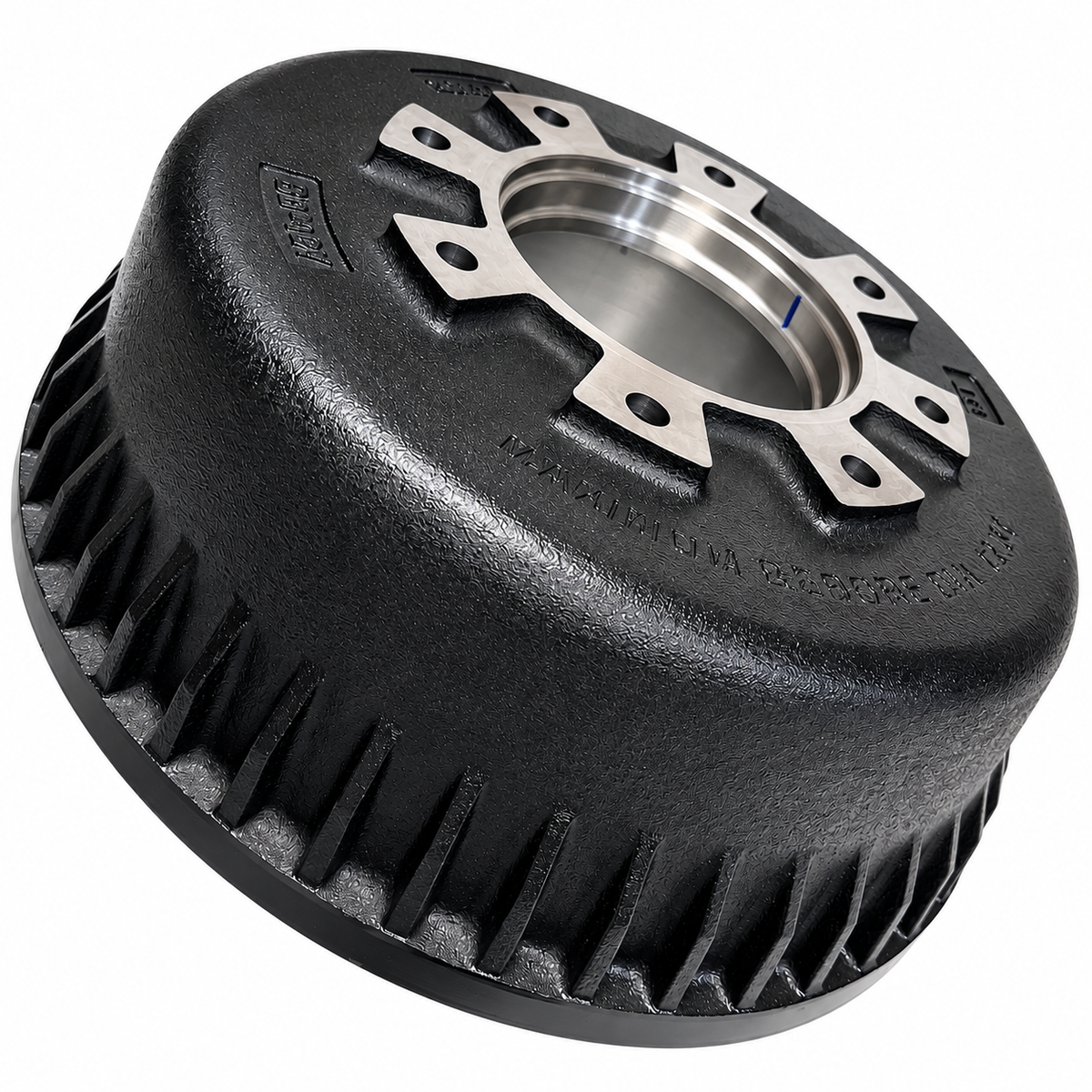

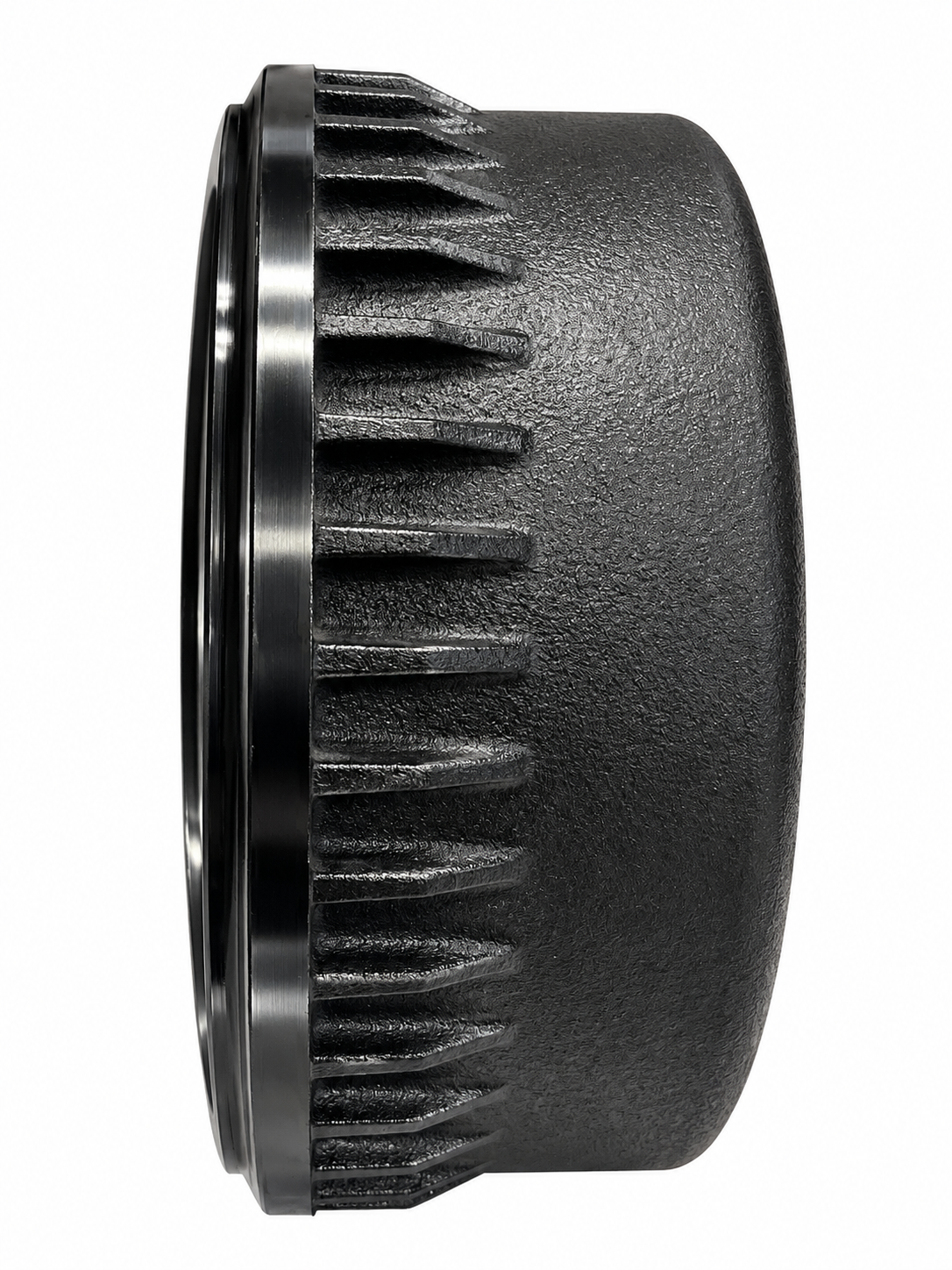

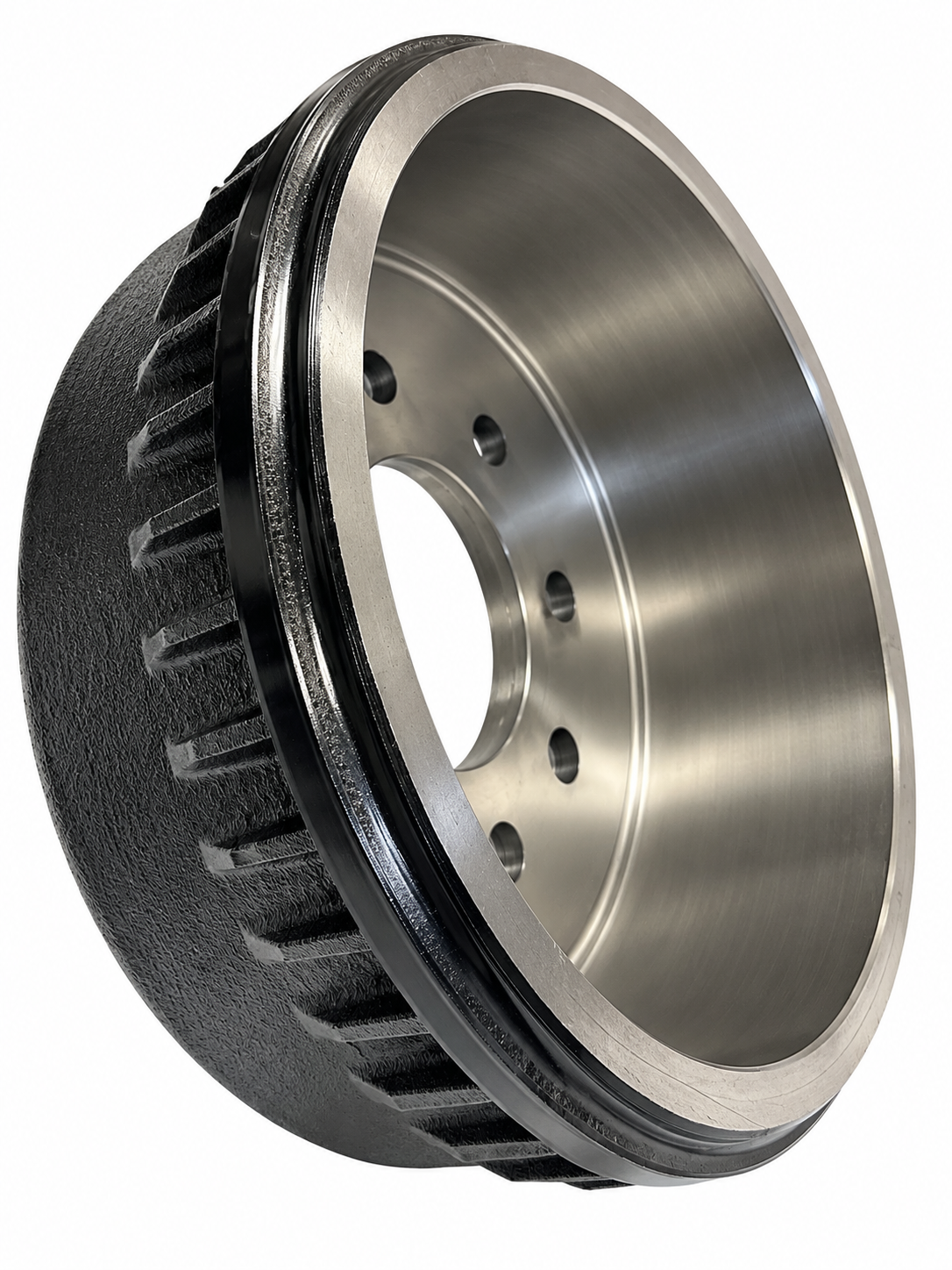

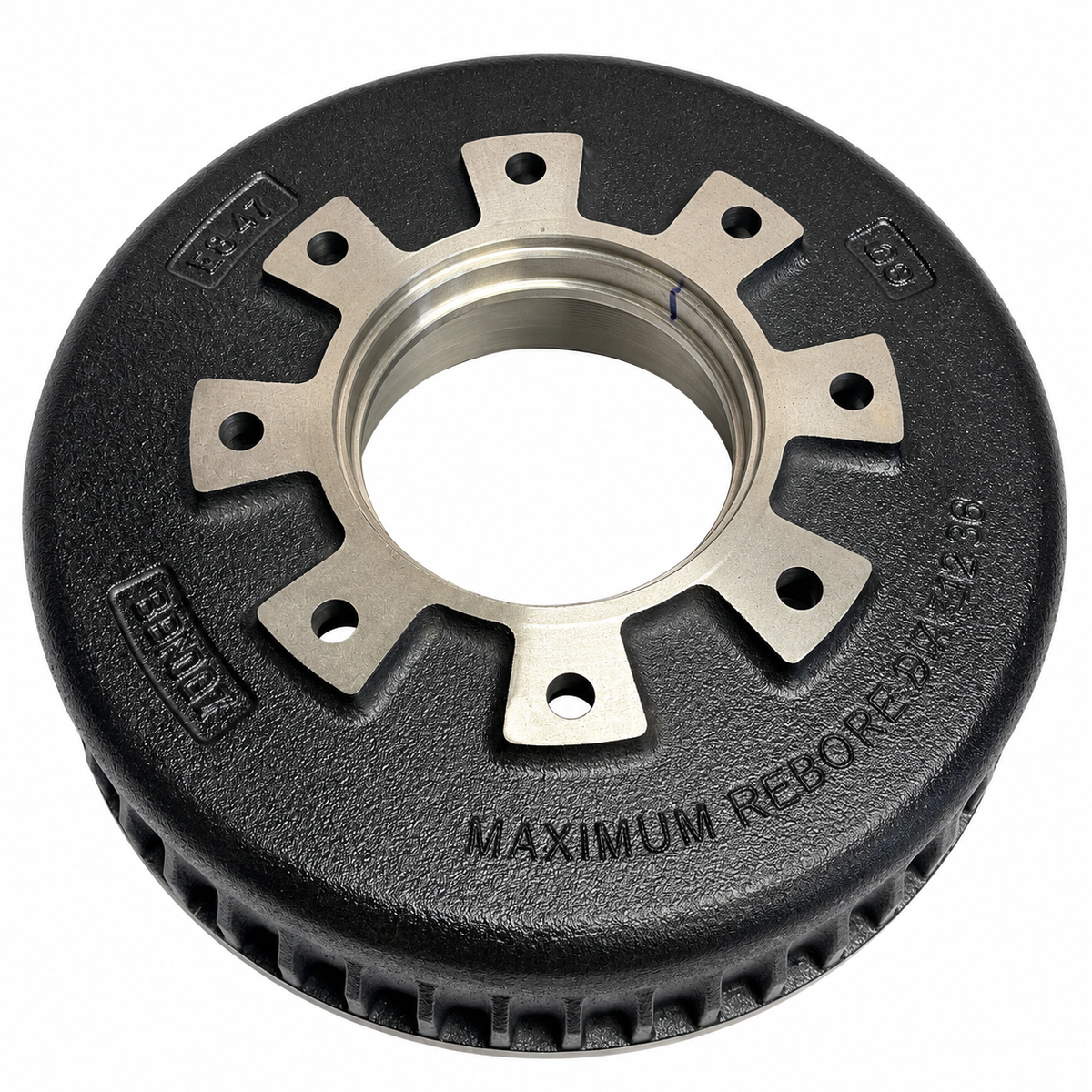

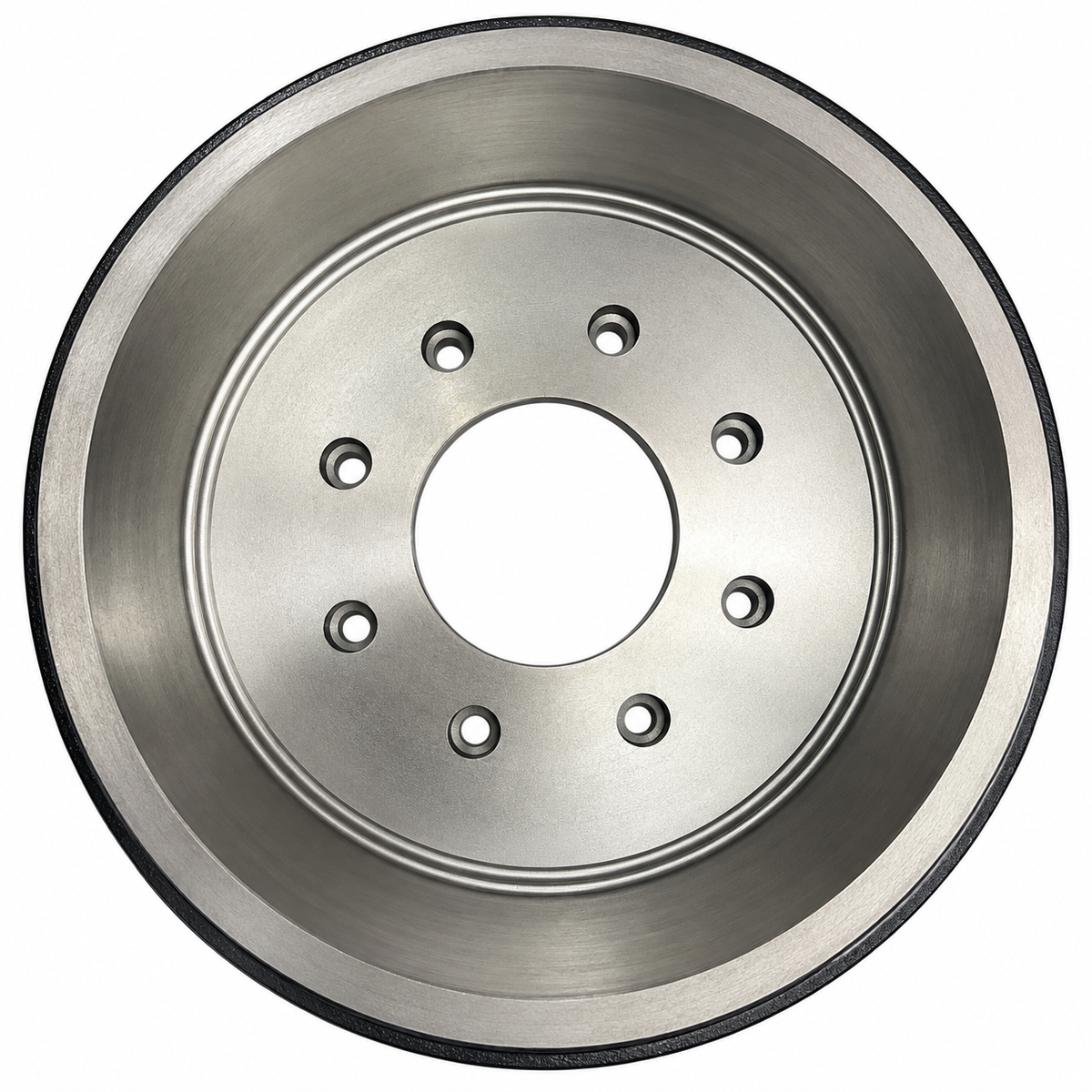

10,000 lb Heavy Duty Drum (12 1/4" X 4")

Product: 10K HD Trailer Axle Drum

• Dexter 10k heavy duty brake drum only
• Fits 12-1/4" x 4" drum brakes
• Pilot size: 4-3/4"
• 8-214-5 hub sold separately
• Requires 8ea 7-244 drum mounting bolts sold separately

Includes:

✅ Brake drum ONLY

❌ No hub, bearings, seal, studs, races, bearings, or lug nuts

• Hub (to mount the drum onto)
• Inner & outer bearings (387A and 395S)
• Bearing races (382A and 394A)
• Oil seal (10-56) 3.125" ID/4.500" OD
• 8 lug nuts
• 8×6.5 bolt pattern compatible hub compatible hub

• Drum is interchangeable with Dexter and Lippert part numbers 009-027-01, 1224400, D009-027-01, 7
• You’re replacing just the drum (your existing hub is intact).
• You already have the correct hub, or you’re rebuilding one.
• You want to save money by reusing existing hub and hardware.

• You're building a new axle assembly from scratch.
• Your hub is damaged or missing.
• You're expecting a pre-assembled part ready to install.

Dexter Axles

• Used on Dexter 10K heavy duty non ABS hubs
