10,000 lb General Duty Drum (Dexter Axles Built Before July 2009)
10,000 lb General Duty Drum (Dexter Axles Built Before July 2009)
Regular price
$205.00 USD
Regular price
$413.00 USD
Sale price
$205.00 USD
Unit price
/
per
Couldn't load pickup availability
🔧 Product Summary

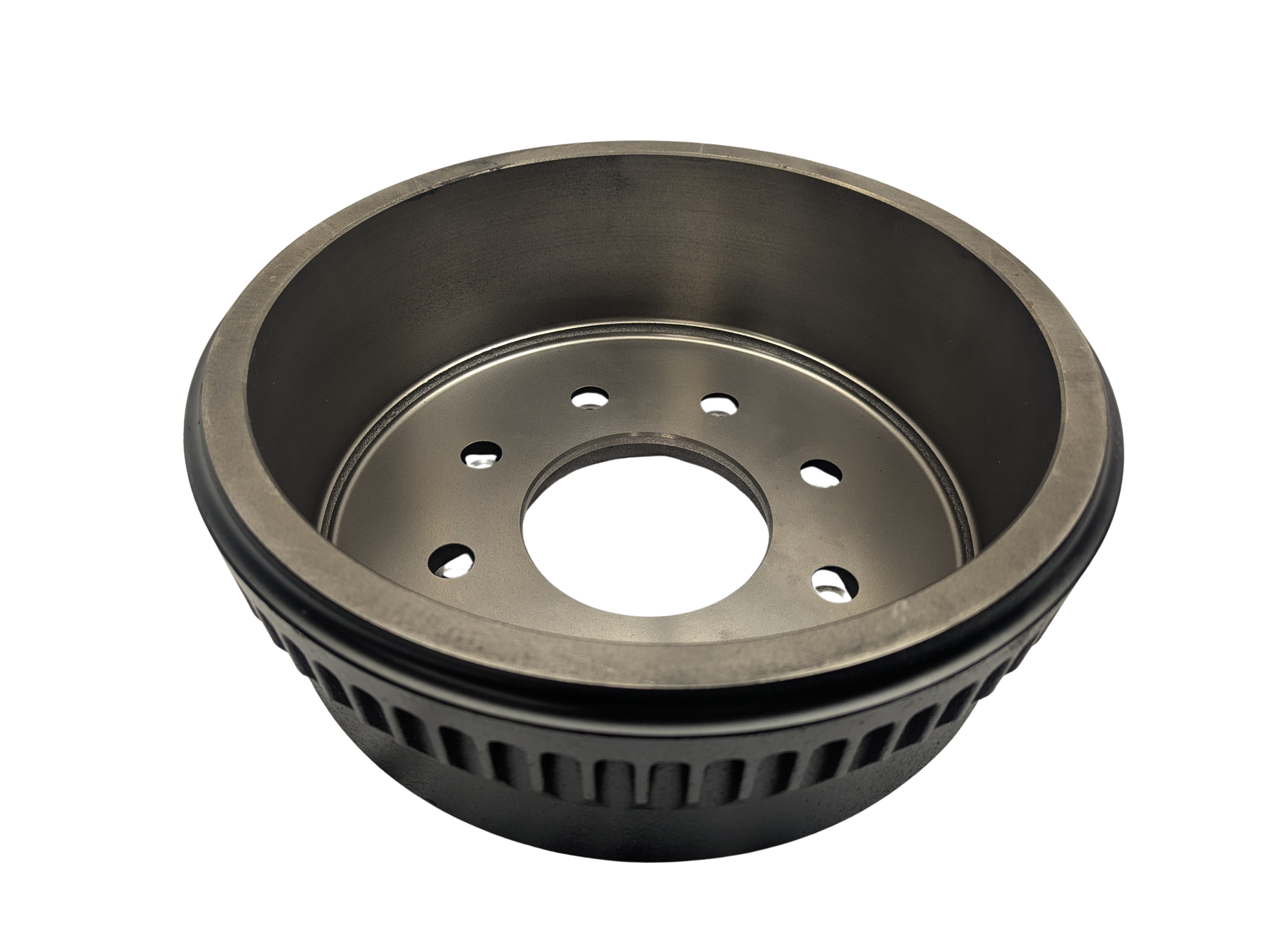

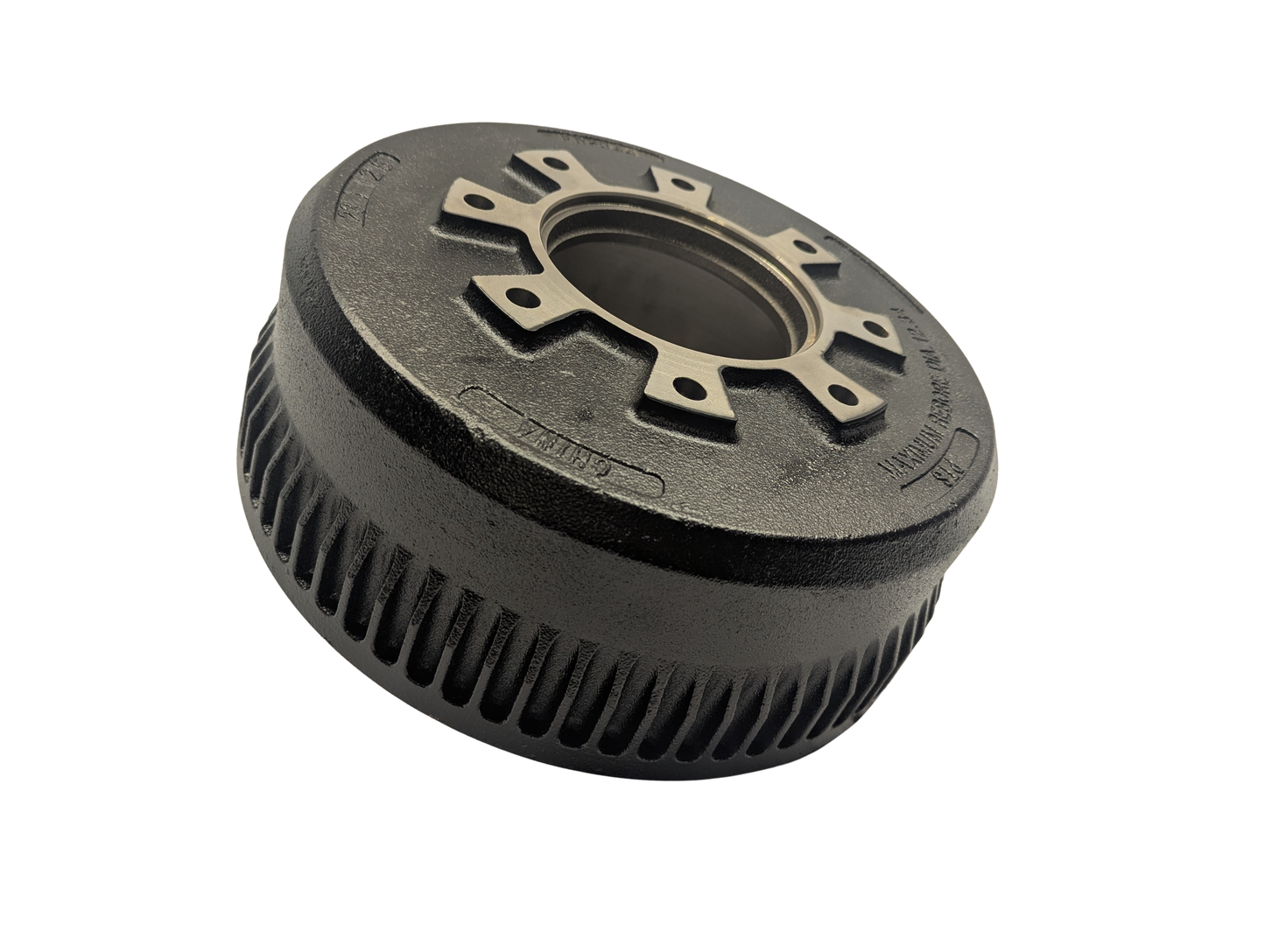

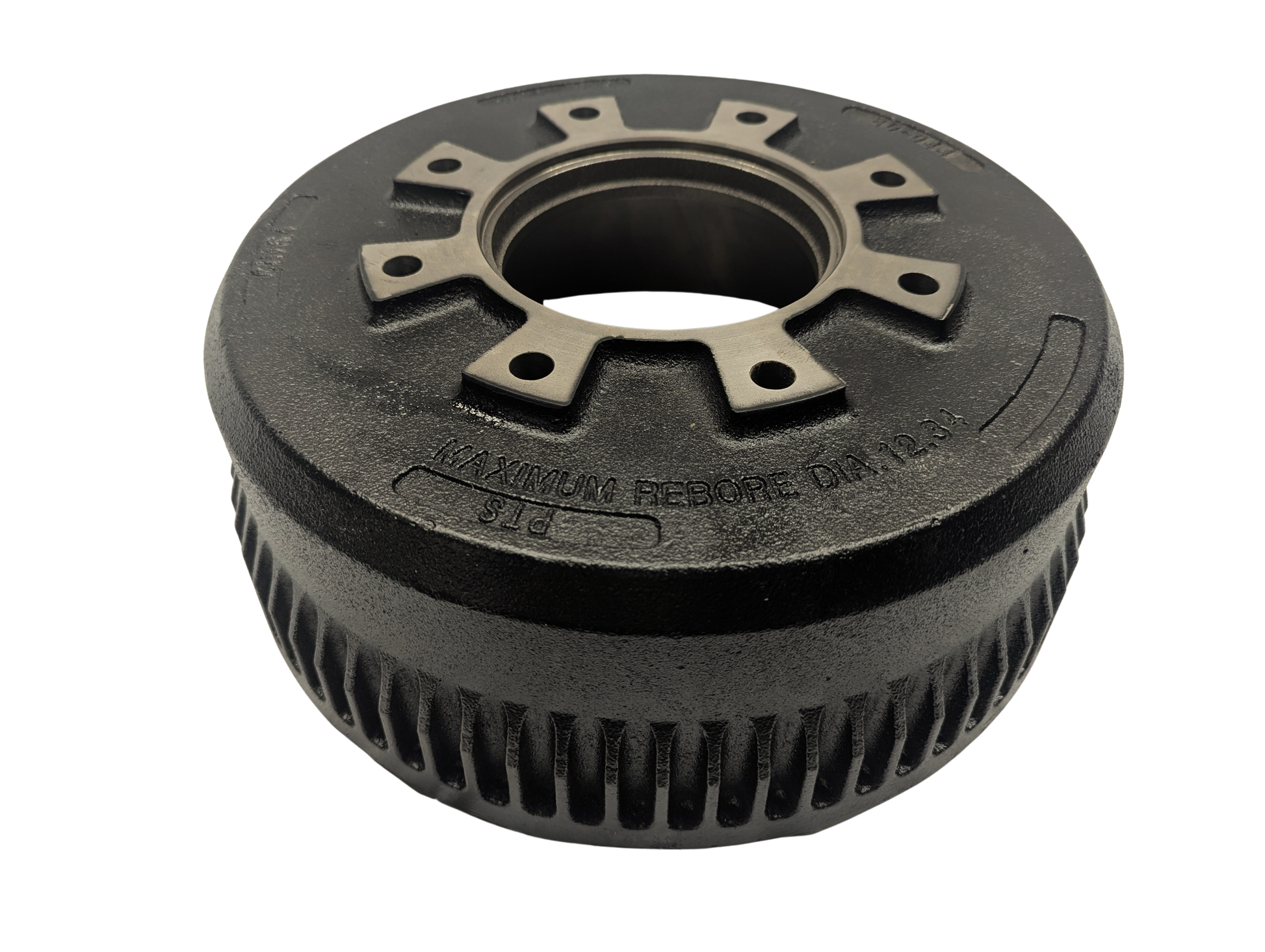

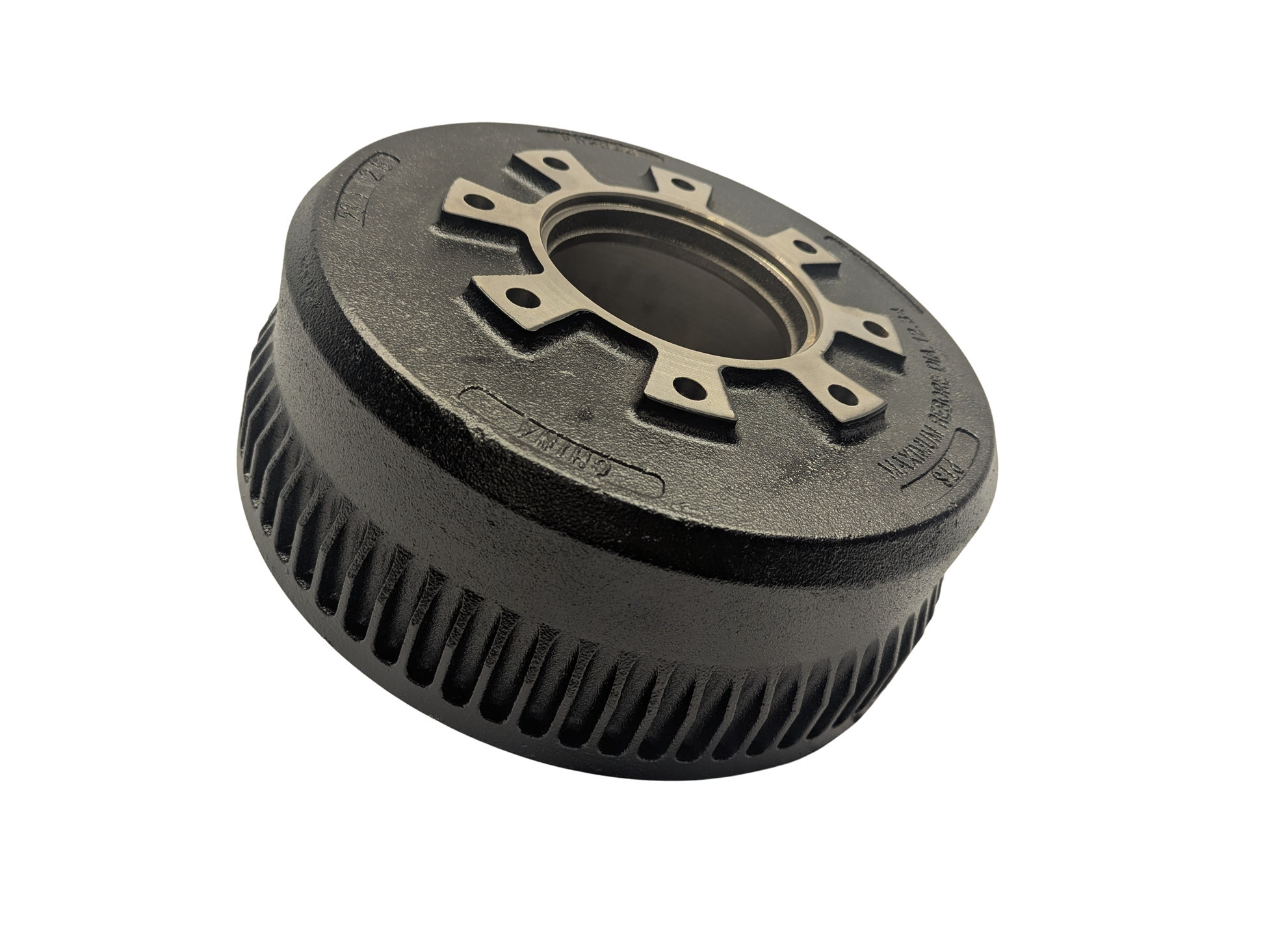

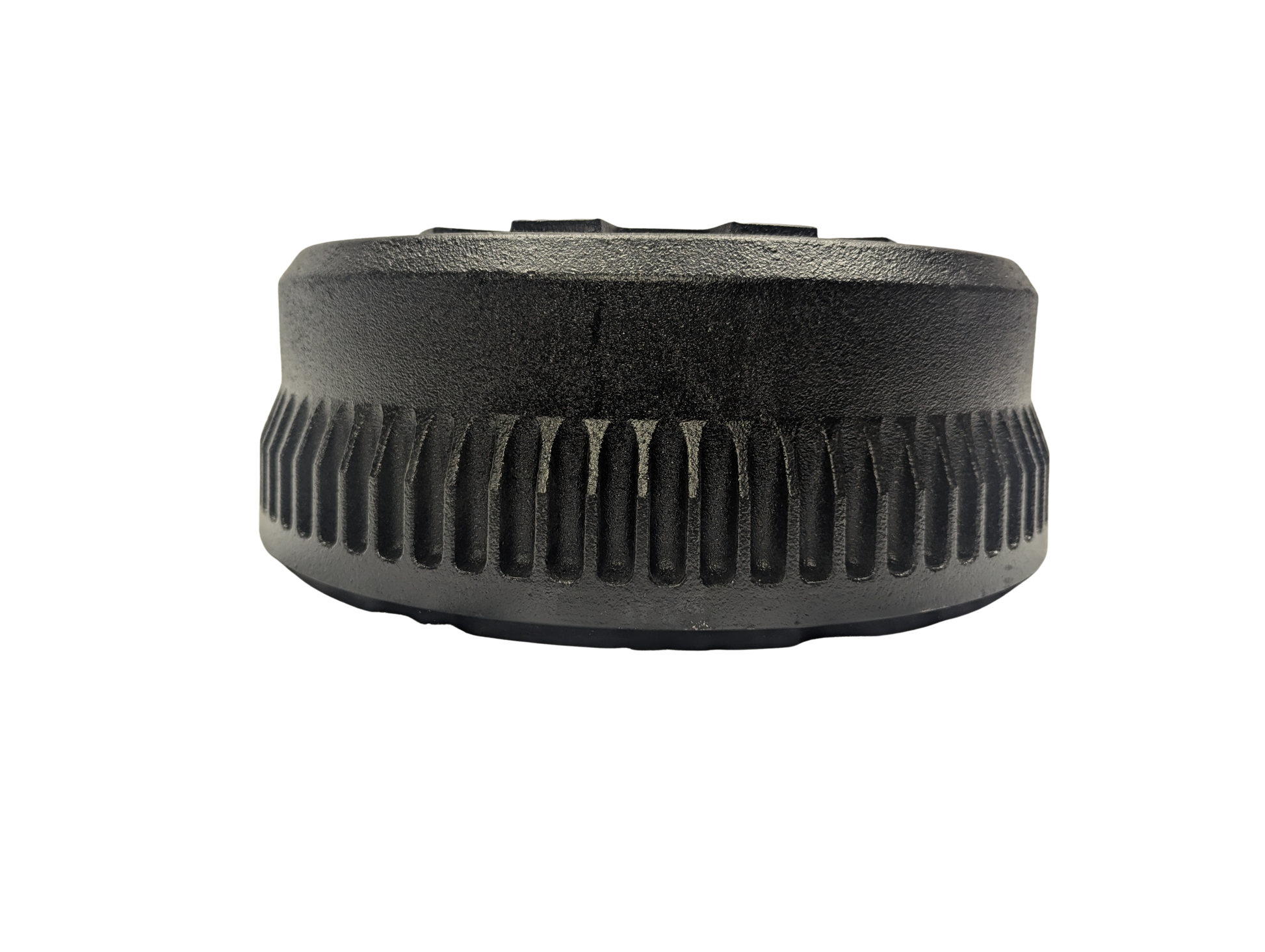

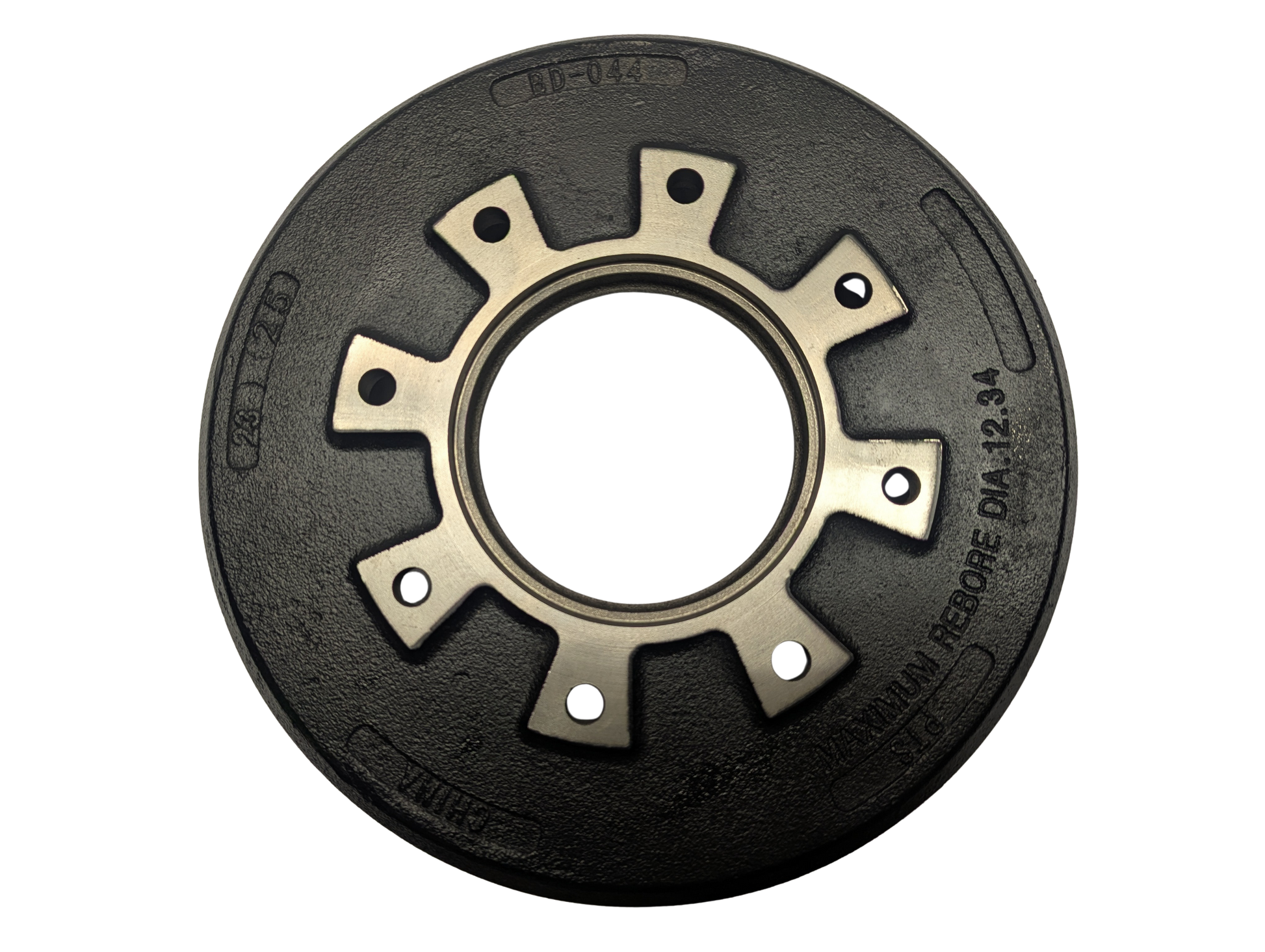

Product: 10K GD Trailer Axle Drum (Long Spindle) – Used on two piece Dexter drums before July 2009
Includes:
✅ Brake drum ONLY
❌ No hub, bearings, seal, studs, races, bearings, or lug nuts
⚠️ What You’ll Still Need (Not Included)
To make this drum usable on your axle, you must already have or purchase separately:
- Hub (to mount the drum onto)
- Inner & outer bearings (25580 and 387A)
- Bearing races (25520 and 382A)
- Oil seal (10-51) 2.875" ID/3.880" OD
- Oil cap (21-88)
- 8 lug nuts
- 8×6.5 bolt pattern compatible hub compatible hub
This drum is designed to bolt to the hub.
✅ When to Buy This Drum-Only Option
Buy this if:
- Drum is interchangeable with Dexter and Lippert part numbers 009-044-01, BD044-D, 184046, 183537
- You’re replacing just the drum (your existing hub is intact).
- You already have the correct hub, or you’re rebuilding one.
- You want to save money by reusing existing hub and hardware.
❌ Don’t Buy This If:
- You're building a new axle assembly from scratch.
- Your hub is damaged or missing.
- You're expecting a pre-assembled part ready to install.
Compatibility:
Dexter Axles
- Used on two piece Dexter drums before July 2009
Lippert Axles
- Used on Lippert long spindles made during 2020 and before.
- Axle tag starting with LCI100 is compatible (LCI100S is a short spindle and non-compatible )
