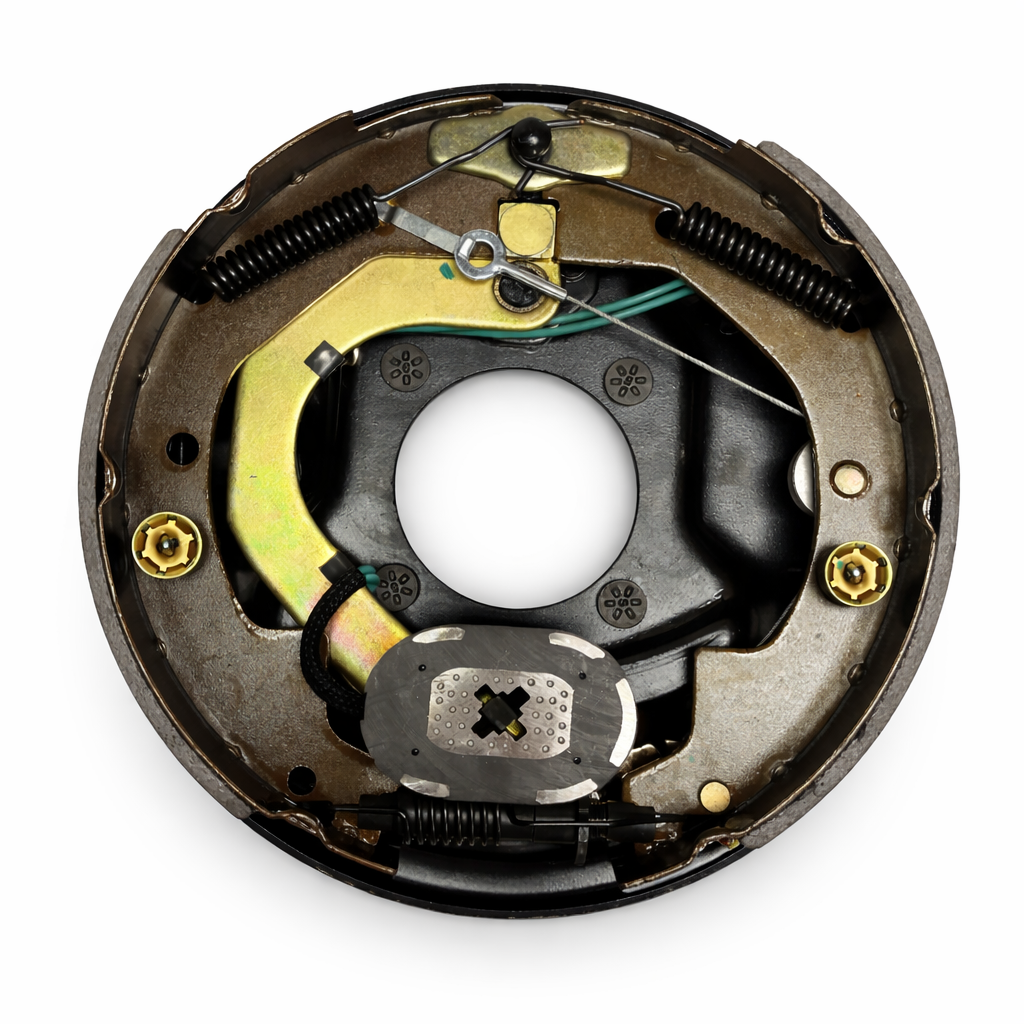

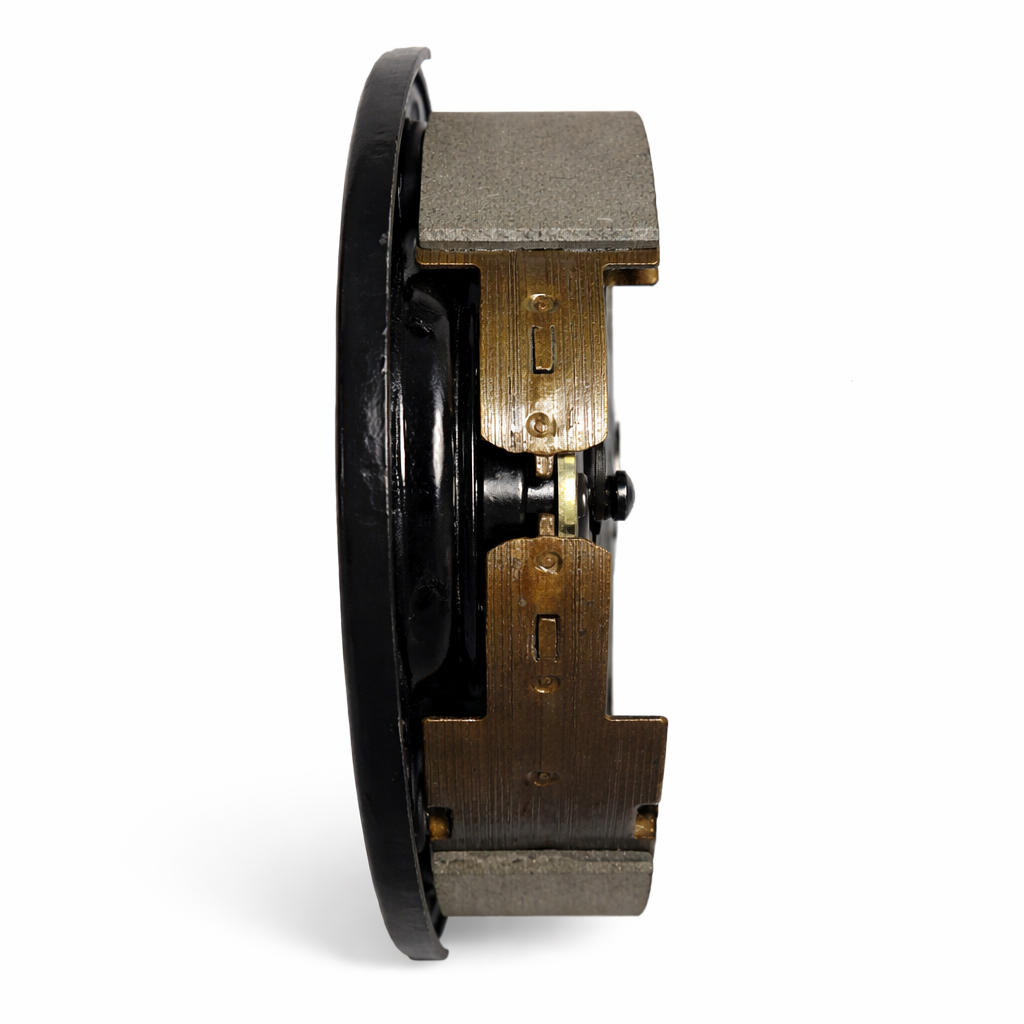

3.5K Trailer Brake - Left Hand Backing Plate - 10 x 2.25 brake Shoe - Self Adjusting

Compatible Brands: Dexter, Lippert, Duratek

Part Number: 023-468-00

Capacity: 3,500 on most brands and 4,400 lbs on Lippert axles

Orientation: Left side (driver’s side)

Brake Type: Electric, self-adjusting

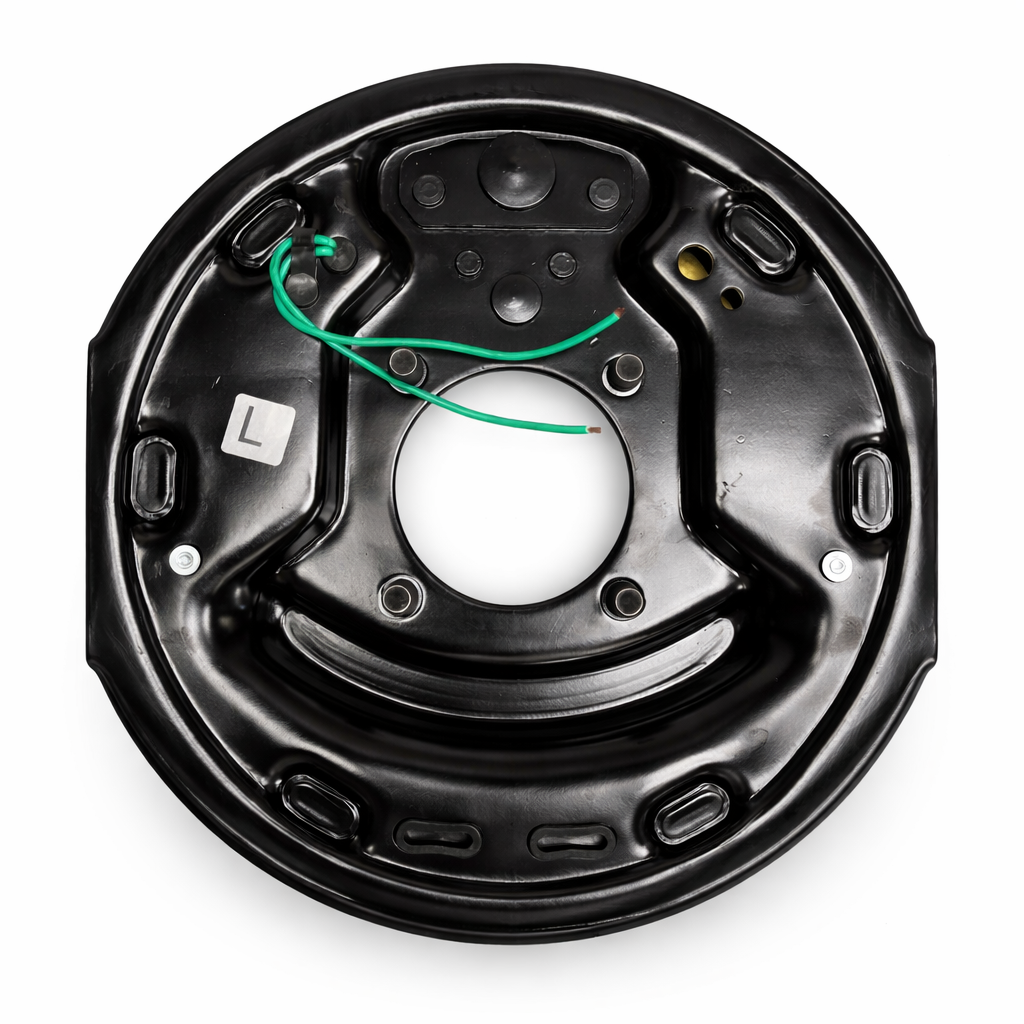

Backing Plate: Stamped, 4-bolt mounting pattern

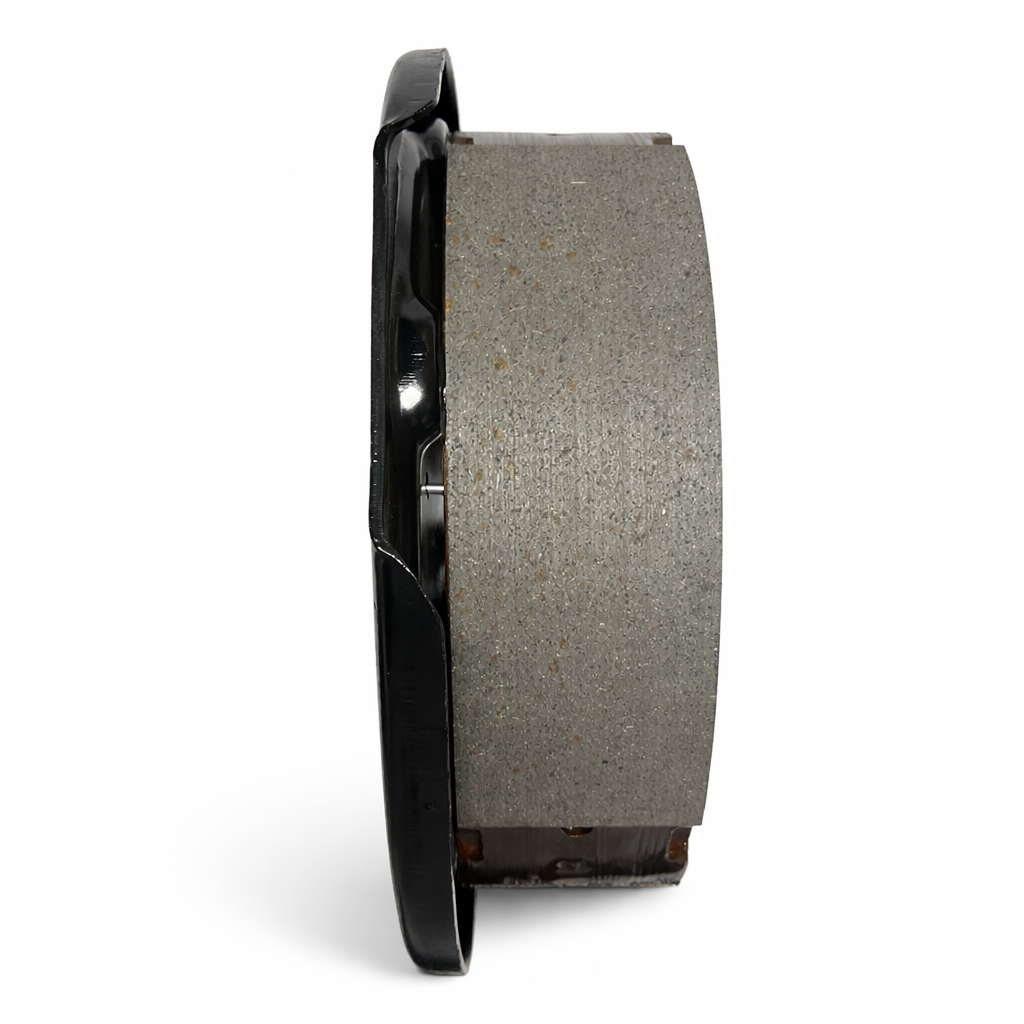

Drum Size Compatibility: 10″ diameter × 2 1/4″ wide shoes

• Direct replacement for Dexter part 023-468-00—perfect fit for 3.5K axles

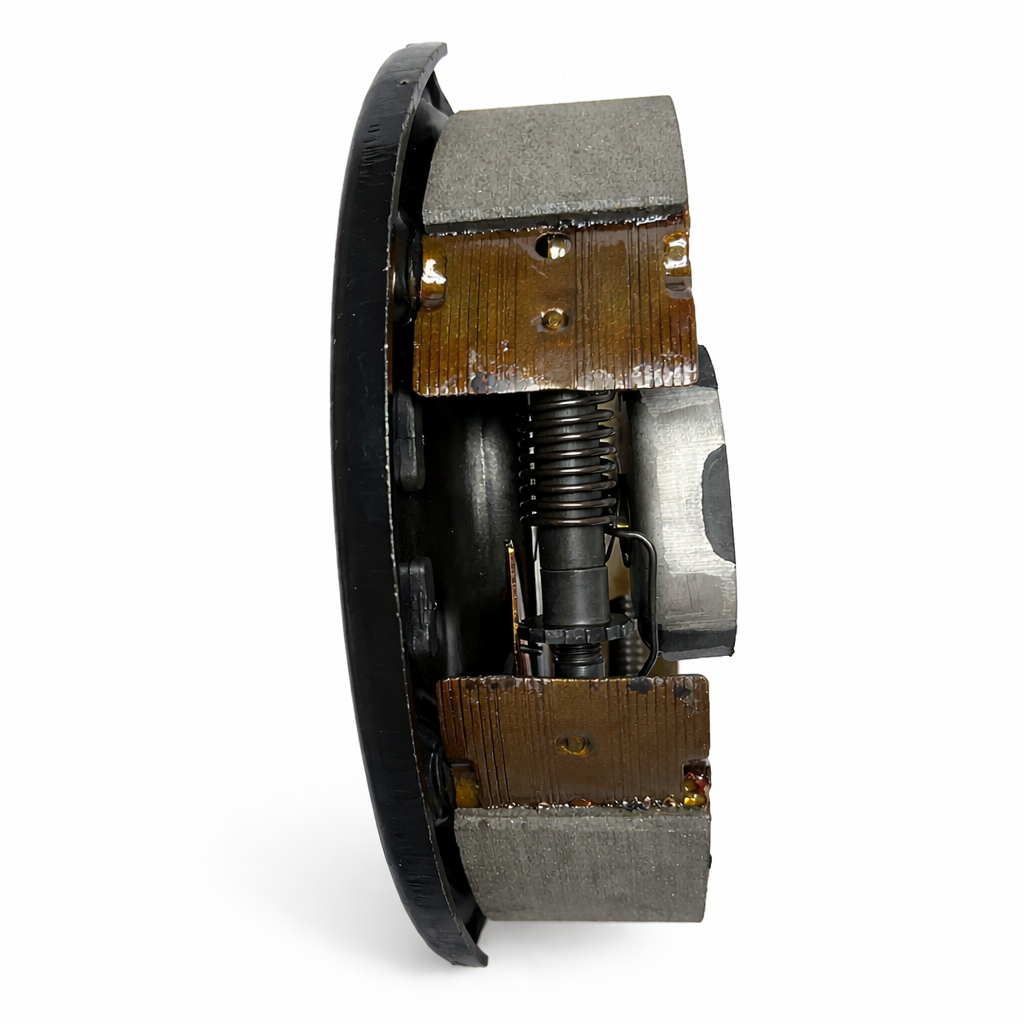

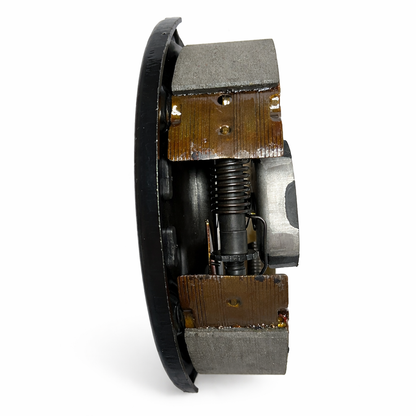

• Self-adjusting mechanism keeps shoe-to-drum clearance optimal, reducing manual maintenance
• 4-bolt flange ensures secure mounting to axle flange; confirm your axle uses 4 bolts before ordering

• Replacing a single left-hand brake assembly on 3.5K axles with a 10" X 2.25" shoe
• Quick and simple swap when paired with its left-side counterpart 023-469-00
• Trailers needing reliable, low-maintenance braking systems
